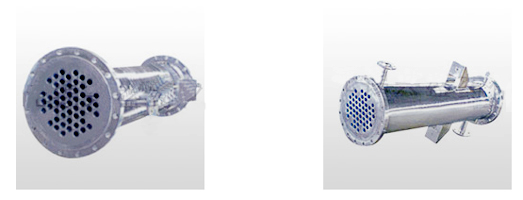

Sanitary condenser

I plant health level condenser by condensing material into carbon steel tube, stainless steel tube carbon steel and stainless steel condenser and mixing tube type condensation of three, divided by the form of a fixed tube plate, floating head, U -tube heat exchanger, according to the structure into a single tube, double tube and multiple tube. Heat transfer area of 0.5-500m2, can be customized according to user needs.
Nominal diameter Number of tube Tube number Heat transfer area nominal value / calculated value Tube passage area tube channel flow when the flow rate of 0.5m/sec m / hr Nominal pressure
Pipe length£¨m£© ¦Õ25¡Á2.5
1500 2000 3000 4000 6000 ¦Õ25¡Á2
159 1 14 1.51.62 22.17 33.27 ¡¡ ¡¡

0.0044/0.0049

 7.92/8.82 0.25
219 1 26 3/3.00 4/4.02 6/6.06 8/8.1 ¡¡ 0.0082/0.0090 14.76/16.20 0.6
¡¡ 2 26 3/3.00 4/4.02 6/6.06 8/8.81 ¡¡ 0.0041/0.0045 7.38/8.01 1.0
273 1 44 5/5.08 7/5.18 10/10.26 14/13.72 21/20.63 0.0138/0.0152 24.84/27.36 1.6
¡¡ 2 40 5/4.62 6/6.19 9/9.33 12/12.47 19/18.76 0.0063/0.0069 11.24/12.42 2.5
325 1 60 7/6.93 9/9.28 14/14.00 19/18.71 28/28.13 0.0188/0.0208 33.84/37.44 0.6
¡¡ 2 56 6/6.47 9/8.66 13/13.05 17/17.46 36/26.26 0.0088/0.0097 15.84/17.46 1.0
400 1 119 14/13.47 18/18.41 28/27.76 37/37.10 55/55.8 0.0374/0.0412 67.32/74.16 1.6
¡¡ 2 110 13/12.70 17/17.02 26/25.66 34/34.20 50/51.58 0.0173/0.0190 31.14/34.20 2.5
500 1 185 ¡¡ ¡¡ 45/4.15 55/57.68 85/86.74 0.0581/0.0641 104.58/115.38 ¡¡
¡¡ 2 180 ¡¡ ¡¡ 40/41.99 55/57.68 85/86.74 0.0283/0.0312 50.94/56.16 ¡¡
600 1 269 ¡¡ ¡¡ 60/62.7 85/83.88 125/126.13 0.0845/0.0932 152.10/167.76 ¡¡
¡¡ 2 266 ¡¡ ¡¡ 60/32.05 80/82.94 125/14.72 0.0418/0.0461 75.24/83.98 ¡¡
700 1 379 ¡¡ ¡¡ 90/88.41 120/118.17 175/177.71 0.0091/0.1313 214.38/236.34 ¡¡
¡¡ 2 358 ¡¡ ¡¡ 85/83.51 110/111.62 165/167.85 0.0562/0.0620 101.16/111.60 ¡¡
800 1 511 ¡¡ ¡¡ 120/119.20 160/159.16 240/239.60 0.1605/0.1770 288.90/318.60 ¡¡
¡¡ 2 488 ¡¡ ¡¡ 115/113.83 150/152.16 230/228.81 0.0767/0.0845 138.06/152.10 ¡¡
900 1 649 ¡¡ ¡¡ 150/151.39 200/202.36 305/304.3 0.2039/0.2248 367.02/404.46 ¡¡
¡¡ 2 630 ¡¡ ¡¡ 145/146.96 195/196.44 295/295.40 0.0990/0.1091 178.20/196.38 ¡¡
1000 1 805 ¡¡ ¡¡ 185/187.78 250/251.00 375/377.45 0.2529/0.2788 455.22/501.74 ¡¡
¡¡ 2 792 ¡¡ ¡¡ 185/184.75 245/246.95 370/371.36 0.1244/0.1374 223.92/246.96 ¡¡
