Vacuum Harrow Dryer

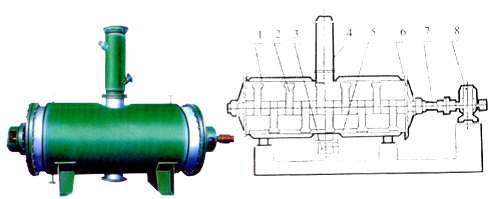

It has the features of simple structure, easy operation, long service life, stable performance, low steam consumption, extensive availability and good quality, especially, it is suitable for drying the pasty material, which is irresistant to high temperature, flammable and easy oxidization with temperature changes. Having been used for years, the device is proved to be an excellent dryer. Principle: the material to be dried is fed from the middle part above dryer, then under continuous stirring of harrow gear, material axis will make fetching movement to keep contacting with inner wall; having been indirectly heated by steam, evenly stirred by harrow gear and smashed by bar, the moistures on the surface of material will be discharged more effectively; gasified moistures are finally released from outlet of vacuum pump by passing dry dust separator, wet dust separator and condensator. Structure: main parts of vacuum harrow dryer:
1. Body 2. Harrow gear 3. Outlet facility 4 Feeding facility 5. Smashing bar 6. Sealing device
7. Stirring axis8. Drive system
Available material:
Slurry and highly pasty material, material less than 100 meshes, various paintings, muddy material, filter and combination, centrifuge filter and combination of pure alkali detergent, alkali starch, dyes, pigment, clay and cement.
Available under certain conditions
Material less than 100 meshes, solution, synthesized fiber, crystallization vacuum liquid, levitation potato slice, ore and suspension
Model and Technical Features:
Main Model Nominal Volume Heat Cond
uct
Area
Feed
ing at One Time
Absolute Pressure Opera
ting Temper
ature
Main Axis
Rot
ation
Mate
rial
Weight Electro
motor
Power
Outer
Size
Length *
Width *
Height
In Cylinder In Jacket
XPG0.5 0.5 1.86 0.2 0.021 0.686 435 15-20 ¡¡ ¡¡ Notes£º3 ¡¡
Auxiliary£º5.5
XPG1 1 6 0.75 0.021 0.686 435 9 A3 3400 5.5 3700¡Á945¡Á3270
1Cr18Ni9Ti 3300
XPG2 2 8 1.2 0.021 0.588 425 9 A3 4900 11 4570¡Á1130¡Á3455
1Cr18Ni9Ti 4800
XPG3 3 11.5 11.5 1.021 0.588 425 9 A3 6400 15 6076¡Á1130¡Á2980
1Cr18Ni9Ti 6300
