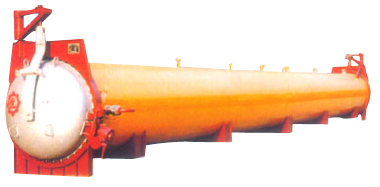

Still Kettle, Sulfuration Tank,Glass Kettle
Main Performing Parameter
Name Unit Model Specification
BLF1.65¡Á4 BLF2¡Á5 BLF2.5¡Á5 BLF2.85¡Á5.5
Inner Diameter of Kettle m 1.65 2 2.5 2.85

Effective Length

m 4 5 5 5.5

Designed Pressure

MPa 1.4 1.5 1.6 1.6

Designed Temperature

¡æ 150 150 160 160

Working Pressure

MPa 1.3 1.4 1.5 1.5

Working Temperature

¡æ 150 150 150 160







Rail Distance in Kettle

mm 900 1050 1000 1000

Effective Volume

m3 9.8 18 25 31

Electric Heating Power

kw 54 72 144 210

Total Power of Electromotor

kw 8 14.5 30.5 22

Total Weight

t 6 8.8 15.4 21.3

Outer Size

m 5.7¡Á2.36¡Á2.73 6.73¡Á2.59¡Á3.19 7¡Á2.97¡Á3.87 8.8¡Á3.4¡Á4.7
For customer¡¯s special demands, we can design separately. £¨¦Õ800~¦Õ3000£©
